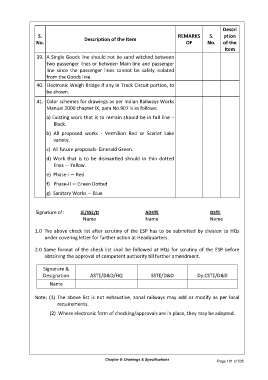

Descri
S. Description of the Item REMARKS S. ption
No. OF No. of the
Item
39. A Single Goods line should not be sand witched between
two passenger lines or between Main line and passenger
line since the passenger lines cannot be safely isolated
from the Goods line.

40. Electronic Weigh Bridge if any in Track Circuit portion, to
be shown.

41. Color schemes for drawings as per Indian Railways Works
Manual 2000 chapter IX, para No.907 is as follows:

a) Existing work that is to remain should be in full line –
Black.

b) All proposed works - Vermilion Red or Scarlet Lake
variety.
c) All future proposals- Emerald Green.

d) Work that is to be dismantled should in thin dotted
lines − Yellow.
e) Phase-I − Red

f) Phase-II − Green Dotted
g) Sanitary Works − Blue

Signature of: JE/SSE/D ADSTE DSTE
Name Name Name

1.0 The above check list after scrutiny of the ESP has to be submitted by division to HQs
under covering letter for further action at Headquarters.

2.0 Same format of the check list shall be followed at HQs for scrutiny of the ESP before
obtaining the approval of competent authority till further amendment.

Signature &
Designation ASTE/D&D/HQ SSTE/D&D Dy.CSTE/D&D

Name

Note: (1) The above list is not exhaustive, zonal railways may add or modify as per local
requirements.

(2) Where electronic form of checking/approvals are in place, they may be adopted.

Chapter 8: Drawings & Specifications Page 181 of 535
