Para No. 8.1.1 (b) Annexure: 8-A2

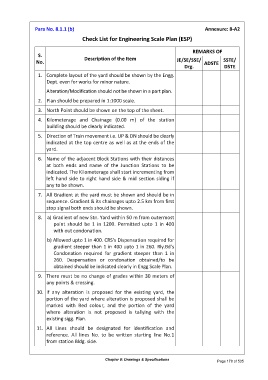

Check List for Engineering Scale Plan (ESP)

REMARKS OF
S. Description of the Item
No. JE/SE/SSE/ ADSTE SSTE/
Drg. DSTE
1. Complete layout of the yard should be shown by the Engg.
Dept. even for works for minor nature.
Alteration/Modification should not be shown in a part plan.

2. Plan should be prepared in 1:1000 scale.

3. North Point should be shown on the top of the sheet.
4. Kilometerage and Chainage (0.00 m) of the station
building should be clearly indicated.

5. Direction of Train movement i.e. UP & DN should be clearly
indicated at the top centre as well as at the ends of the
yard.

6. Name of the adjacent Block Stations with their distances
at both ends and name of the Junction Stations to be
indicated. The Kilometerage shall start incrementing from
left hand side to right hand side & mid section siding if
any to be shown.

7. All Gradient at the yard must be shown and should be in
sequence. Gradient & its chainages upto 2.5 km from first
stop signal both ends should be shown.
8. a) Gradient of new Stn. Yard within 50 m from outermost
point should be 1 in 1200. Permitted upto 1 in 400
with out condonation.

b) Allowed upto 1 in 400. CRS‘s Dispensation required for
gradient steeper than 1 in 400 upto 1 in 260. Rly.Bd’s
Condonation required for gradient steeper than 1 in
260. Despensation or condonation obtained/to be
obtained should be indicated clearly in Engg Scale Plan.

9. There must be no change of grades within 30 meters of
any points & crossing.

10. If any alteration is proposed for the existing yard, the
portion of the yard where alteration is proposed shall be
marked with Red colour, and the portion of the yard
where alteration is not proposed is tallying with the
existing sigg. Plan.

11. All Lines should be designated for identification and
reference. All lines No. to be written starting line No.1
from station Bldg. side.

Chapter 8: Drawings & Specifications Page 178 of 535
