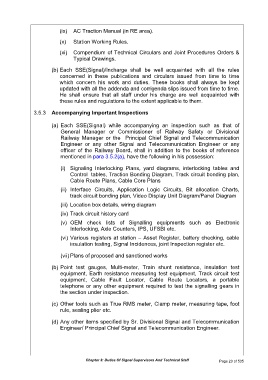

(ix) AC Traction Manual (in RE area).

(x) Station Working Rules.

(xi) Compendium of Technical Circulars and Joint Procedures Orders &
Typical Drawings.

(b) Each SSE(Signal)/Incharge shall be well acquainted with all the rules
concerned in these publications and circulars issued from time to time
which concern his work and duties. These books shall always be kept
updated with all the addenda and corrigenda slips issued from time to time.
He shall ensure that all staff under his charge are well acquainted with
these rules and regulations to the extent applicable to them.

3.5.3 Accompanying Important Inspections

(a) Each SSE(Signal) while accompanying an inspection such as that of
General Manager or Commissioner of Railway Safety or Divisional
Railway Manager or the Principal Chief Signal and Telecommunication
Engineer or any other Signal and Telecommunication Engineer or any
officer of the Railway Board, shall in addition to the books of reference
mentioned in para 3.5.2(a), have the following in his possession:

(i) Signaling Interlocking Plans, yard diagrams, interlocking tables and
Control tables, Traction Bonding Diagram, Track circuit bonding plan,
Cable Route Plans, Cable Core Plans

(ii) Interface Circuits, Application Logic Circuits, Bit allocation Charts,
track circuit bonding plan, Video Display Unit Diagram/Panel Diagram

(iii) Location box details, wiring diagram
(iv) Track circuit history card

(v) OEM check lists of Signalling equipments such as Electronic
Interlocking, Axle Counters, IPS, UFSBI etc.

(vi) Various registers at station – Asset Register, battery checking, cable
insulation testing, Signal Incidences, joint Inspection register etc.

(vii) Plans of proposed and sanctioned works

(b) Point test gauges, Multi-meter, Train shunt resistance, insulation test
equipment, Earth resistance measuring test equipment, Track circuit test
equipment, Cable Fault Locator, Cable Route Locators, a portable
telephone or any other equipment required to test the signalling gears in
the section under inspection.

(c) Other tools such as True RMS meter, Clamp meter, measuring tape, foot
rule, sealing plier etc.

(d) Any other items specified by Sr. Divisional Signal and Telecommunication
Engineer/ Principal Chief Signal and Telecommunication Engineer.

Chapter 3: Duties Of Signal Supervisors And Technical Staff Page 20 of 535
