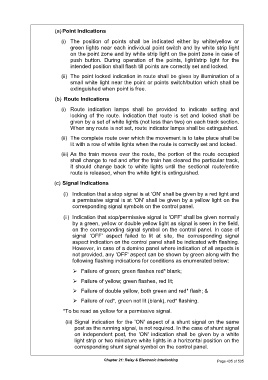

(a) Point Indications

                            (i)  The  position  of  points  shall  be  indicated  either  by  white/yellow  or
                                green lights near each individual point switch and by white strip light
                                on the point zone and by white strip light on the point zone in case of
                                push  button.  During  operation  of  the  points,  light/strip  light  for  the
                                intended position shall flash till points are correctly set and locked.
                            (ii)  The point locked indication in route shall be given by illumination of a
                                small white light near the point or points switch/button which shall be
                                extinguished when point is free.
                         (b)  Route Indications

                            (i)  Route  indication  lamps  shall  be  provided  to  indicate  setting  and
                                locking  of  the  route.  Indication  that  route  is  set  and  locked  shall  be
                                given by a set of white lights (not less than two) on each track section.
                                When any route is not set, route indicator lamps shall be extinguished.
                            (ii)  The complete route over which the movement is to take place shall be
                                lit with a row of white lights when the route is correctly set and locked.

                            (iii) As the train moves over the route, the portion of the route occupied
                                shall change to red and after the train has cleared the particular track,
                                it  should  change  back  to  white  lights  until  the  sectional  route/entire
                                route is released, when the white light is extinguished.

                         (c) Signal Indications

                             (i)  Indication that a stop signal is at 'ON' shall be given by a red light and
                                 a permissive signal is at 'ON' shall be given by a yellow light on the
                                 corresponding signal symbols on the control panel.

                             (ii)  Indication that stop/permissive signal is 'OFF' shall be given normally
                                 by a green, yellow or double yellow light as signal is seen in the field,
                                 on the corresponding signal symbol on the control panel. In case of
                                 signal  ‘OFF’  aspect  failed  to  lit  at  site,  the  corresponding  signal
                                 aspect indication on the control panel shall be indicated with flashing.
                                 However, in case of a domino panel where indication of all aspects is
                                 not provided, any 'OFF' aspect can be shown by green along with the
                                 following flashing indications for conditions as enumerated below:

                                   Failure of green; green flashes red* blank;

                                   Failure of yellow; green flashes, red lit;

                                   Failure of double yellow, both green and red* flash; &
                                   Failure of red*, green not lit (blank), red* flashing.

                             *To be read as yellow for a permissive signal.

                              (iii) Signal indication for the 'ON' aspect of a shunt signal on the same
                                  post as the running signal, is not required. In the case of shunt signal
                                  on  independent post, the  'ON'  indication  shall  be  given  by  a  white
                                  light strip or two miniature white lights in a horizontal position on the
                                  corresponding shunt signal symbol on the control panel.
