Para No. 19.2.1 (b) (ii), 3.6.3 (d), 9.1.4 (b) (vi) Annexure: 19-A1 (Sheet 1 of 3)
Form No.S&T/19.2.1/Signal sighting

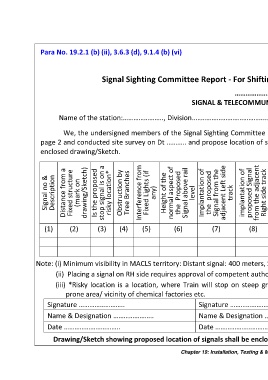

Signal Sighting Committee Report - For Shifting of Existing Signals/Erection of New Signals

………………….RAILWAY
SIGNAL & TELECOMMUNICATION DEPARTMENT

Name of the station:………………….., Division..…………………………………..., Name of Work.…………………………….., Signalling Plan Number:

We, the undersigned members of the Signal Sighting Committee are aware of codal provisions on locating signals , read the guidelines in
page 2 and conducted site survey on Dt ……….. and propose location of signals as given below as per our best judgment, the same are marked on
enclosed drawing/Sketch.

Signal no & Description Distance from a Fixed structure (mark on drawing/Sketch) Is the proposed stop signal is on a risky location* Obstruction by Tree Branches Interference from Fixed Lights (if any) Height of the normal aspect of the Proposed Signal above rail level Implantatio

(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (12) (13) (14) (15)

Note: (i) Minimum visibility in MACLS territory: Distant signal: 400 meters, Stop signal: 200 meters.
(ii) Placing a signal on RH side requires approval of competent authority.
(iii) *Risky location is a location, where Train will stop on steep gradients/Girder Bridge/viaduct/Culvert/Cutting/Obstruction to Road/Theft
prone area/ vicinity of chemical factories etc.
Signature …………………….. Signature …………………….. Signature ……………………..
Name & Designation ………………….. Name & Designation ………………….. Name & Designation …………………..
Date ………………………….. Date ………………………….. Date …………………………..

Drawing/Sketch showing proposed location of signals shall be enclosed duly signed by Committee members
Chapter 19: Installation, Testing & Maintenance of Signalling Equipment Page 415 of 535
