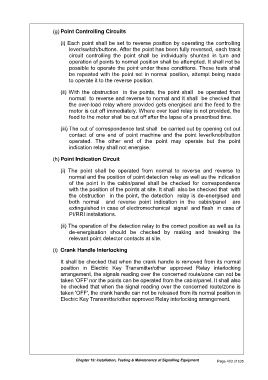

(g) Point Controlling Circuits

                            (i) Each point shall be set to reverse position by operating the controlling
                                lever/switch/buttons. After the point has been fully reversed, each track
                                circuit  controlling  the  point  shall  be  individually  shunted  in  turn  and
                                operation of points to normal position shall be attempted. It shall not be
                                possible to operate the point under these conditions. These tests shall
                                be repeated with the point set in normal position, attempt being made
                                to operate it to the reverse position.

                            (ii) With  the  obstruction    in  the  points,  the  point  shall    be  operated  from
                                normal  to reverse and reverse to normal and it shall  be checked that
                                the over-load relay where provided gets energised and the feed to the
                                motor is cut off immediately. Where over load relay is not provided, the
                                feed to the motor shall be cut off after the lapse of a prescribed time.


                            (iii) The out of correspondence test shall  be carried out by opening cut out
                                contact  of  one  end  of  point  machine  and  the  point  lever/knob/button
                                operated.  The  other  end  of  the  point  may  operate  but  the  point
                                indication relay shall not energise.

                         (h) Point Indication Circuit

                            (i)  The  point  shall  be  operated  from  normal  to  reverse  and  reverse  to
                                normal and the position of point detection relay as well as the indication
                                of  the  point  in  the  cabin/panel  shall  be  checked  for  correspondence
                                with the position of the points at site. It shall  also be checked that  with
                                the obstruction  in the point, the detection  relay is de-energised and
                                both  normal    and  reverse  point  indication  in  the  cabin/panel    are
                                extinguished in case of electromechanical  signal  and flash  in case of
                                PI/RRI installations.


                            (ii) The operation of the detection relay to the correct position as well as its
                                de-energisation  should  be  checked  by  making  and  breaking  the
                                relevant point detector contacts at site.

                         (i)  Crank Handle Interlocking

                            It shall be checked that when the crank handle is removed from its normal
                            position  in  Electric  Key  Transmitter/other  approved  Relay  interlocking
                            arrangement, the signals reading over the concerned route/zone can not be
                            taken 'OFF' nor the points can be operated from the cabin/panel. It shall also
                            be checked that when the signal reading over the concerned route/zone is
                            taken 'OFF', the crank handle can not be released from its normal position in
                            Electric Key Transmitter/other approved Relay interlocking arrangement.











                                   Chapter 19: Installation, Testing & Maintenance of Signalling Equipment   Page 403 of 535
