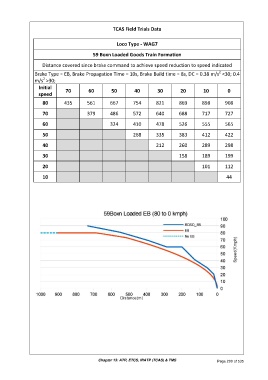

TCAS Field Trials Data
Loco Type - WAG7
59 Boxn Loaded Goods Train Formation
Distance covered since brake command to achieve speed reduction to speed indicated
2
Brake Type = EB, Brake Propagation Time = 10s, Brake Build time = 8s, DC = 0.38 m/s <30; 0.4
2
m/s >30;
Initial 70 60 50 40 30 20 10 0
speed
80 435 561 667 754 821 869 898 908
70 379 486 572 640 688 717 727
60 324 410 478 526 555 565
50 268 335 383 412 422
40 212 260 289 298
30 158 189 199
20 101 112
10 44
