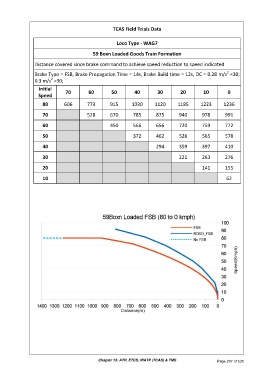

TCAS Field Trials Data
Loco Type - WAG7
59 Boxn Loaded Goods Train Formation
Distance covered since brake command to achieve speed reduction to speed indicated
2
Brake Type = FSB, Brake Propagation Time = 14s, Brake Build time = 12s, DC = 0.28 m/s <30;
2
0.3 m/s >30;
Initial
Speed 70 60 50 40 30 20 10 0
80 606 773 915 1030 1120 1185 1223 1236
70 528 670 785 875 940 978 991
60 450 566 656 720 759 772
50 372 462 526 565 578
40 294 359 397 410
30 221 263 276
20 141 155
10 62
