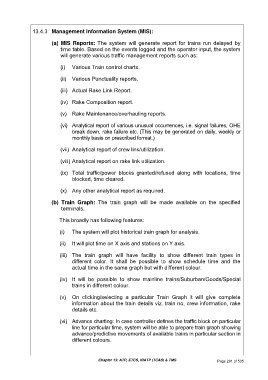

13.4.3 Management Information System (MIS):

(a) MIS Reports: The system will generate report for trains run delayed by
time table. Based on the events logged and the operator input, the system
will generate various traffic management reports such as:

(i) Various Train control charts.

(ii) Various Punctuality reports.

(iii) Actual Rake Link Report.

(iv) Rake Composition report.

(v) Rake Maintenance/overhauling reports.

(vi) Analytical report of various unusual occurrences, i.e. signal failures, OHE
break down, rake failure etc. (This may be generated on daily, weekly or
monthly basis on prescribed format.)

(vii) Analytical report of crew link/utilization.

(viii) Analytical report on rake link utilization.

(ix) Total traffic/power blocks granted/refused along with locations, time
blocked, time cleared.

(x) Any other analytical report as required.

(b) Train Graph: The train graph will be made available on the specified
terminals.

This broadly has following features:

(i) The system will plot historical train graph for analysis.

(ii) It will plot time on X axis and stations on Y axis.

(iii) The train graph will have facility to show different train types in
different color. It shall be possible to show schedule time and the
actual time in the same graph but with different colour.

(iv) It will be possible to show mainline trains/Suburban/Goods/Special
trains in different colour.

(v) On clicking/selecting a particular Train Graph it will give complete
information about the train details viz. train no, crew information, rake
details etc.

(vi) Advance charting: In case controller defines the traffic block on particular
line for particular time, system will be able to prepare train graph showing
advance/predictive movements of available trains in particular section in
different colours.
