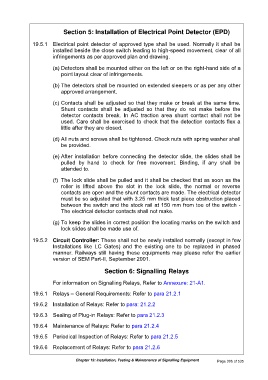

Section 5: Installation of Electrical Point Detector (EPD)

               19.5.1  Electrical point detector of approved type shall be used. Normally it shall be
                         installed beside the close switch leading to high-speed movement, clear of all
                         infringements as per approved plan and drawing.

                         (a) Detectors shall be mounted either on the left or on the right-hand side of a
                            point layout clear of infringements.

                         (b) The detectors shall be mounted on extended sleepers or as per any other
                            approved arrangement.


                         (c) Contacts shall be adjusted so that they make or break at the same time.
                            Shunt  contacts  shall  be  adjusted  so  that  they  do  not  make  before  the
                            detector  contacts  break.  In  AC  traction  area  shunt  contact  shall  not  be
                            used. Care shall be exercised to check that the detection contacts flex a
                            little after they are closed.


                         (d) All nuts and screws shall be tightened. Check nuts with spring washer shall
                            be provided.

                         (e) After installation  before  connecting  the  detector slide,  the  slides  shall  be
                            pulled  by  hand  to  check  for  free  movement.  Binding,  if  any  shall  be
                            attended to.

                         (f)  The lock slide shall be pulled and it shall be checked that as soon as the
                            roller  is  lifted  above  the  slot  in  the  lock  slide,  the  normal  or  reverse
                            contacts are open and the shunt contacts are made. The electrical detector
                            must be so adjusted that with 3.25 mm thick test piece obstruction placed
                            between the switch and the stock rail at 150 mm from toe of the switch -
                            The electrical detector contacts shall not make.
                        (g) To keep the slides in correct position the locating marks on the switch and
                            lock slides shall be made use of.


               19.5.2  Circuit Controller: These shall not be newly installed normally (except in few
                         Installations  like  LC  Gates)  and  the  existing  one  to  be  replaced  in  phased
                         manner. Railways still having these equipments may please refer the earlier
                         version of SEM Part-II, September 2001.

                                               Section 6: Signalling Relays

                         For information on Signalling Relays, Refer to Annexure: 21-A1.

               19.6.1  Relays – General Requirements: Refer to para 21.2.1

               19.6.2  Installation of Relays: Refer to para: 21.2.2

               19.6.3  Sealing of Plug-in Relays: Refer to para 21.2.3

               19.6.4  Maintenance of Relays: Refer to para 21.2.4

               19.6.5  Periodical Inspection of Relays: Refer to para 21.2.5

               19.6.6  Replacement of Relays: Refer to para 21.2.6


                                   Chapter 19: Installation, Testing & Maintenance of Signalling Equipment   Page 396 of 535
