AXR2-C1
BP-EXB4, EXB3-105
NW-IBS (DN)
INPUT - QUAD MODE OUTPUT-QUAD MODE
INPUT FUNCTION OUTPUT FUNCTION
INPUT 1A OUTPUT 1A
INPUT 1B OUTPUT 1B
INPUT 1C 7 DR-B OUTPUT 1C 7 DECR-B
INPUT 1D OUTPUT 1D
INPUT 2A OUTPUT 2A
INPUT 2B SPARE OUTPUT 2B 7 RECR-B
INPUT 2C OUTPUT 2C
INPUT 2D OUTPUT 2D
INPUT 3A OUTPUT 3A
INPUT 3B SPARE OUTPUT 3B SPARE
INPUT 3C OUTPUT 3C
INPUT 3D OUTPUT 3D

AXR2-C3
BP-EXB4, EXB2-104
NW-WADI
INPUT - QUAD MODE OUTPUT-QUAD MODE
INPUT FUNCTION OUTPUT FUNCTION
INPUT 1A OUTPUT 1A
INPUT 1B UP-CRR-B OUTPUT 1B UP-ACPR-INDC-B
INPUT 1C OUTPUT 1C
INPUT 1D OUTPUT 1D
INPUT 2A OUTPUT 2A
INPUT 2B UP-CO-PR-B OUTPUT 2B DN-CRR-B
INPUT 2C OUTPUT 2C
INPUT 2D OUTPUT 2D
INPUT 3A OUTPUT 3A
INPUT 3B DN-ACPR-INDC-B OUTPUT 3B DN-CO-PR-B
INPUT 3C OUTPUT 3C
INPUT 3D OUTPUT 3D

AXR2-C1
BP-EXB4, EXB4-106
IBS-NW (DN)
INPUT - SINGLE MODE OUTPUT-SINGLE MODE
INPUT FUNCTION OUTPUT FUNCTION
INPUT 1A SPARE OUTPUT 1A 7D HECR-B
INPUT 1B SPARE OUTPUT 1B 7D DECR-B
INPUT 1C SPARE OUTPUT 1C 7D HHECR-B
INPUT 1D SPARE OUTPUT 1D 7 ID HECR-B
INPUT 2A SPARE OUTPUT 2A 7 ID DECR-B
INPUT 2B SPARE OUTPUT 2B SPARE
INPUT 2C SPARE OUTPUT 2C SPARE
INPUT 2D SPARE OUTPUT 2D SPARE
INPUT 3A SPARE OUTPUT 3A SPARE
INPUT 3B SPARE OUTPUT 3B SPARE
INPUT 3C SPARE OUTPUT 3C SPARE
INPUT 3D SPARE OUTPUT 3D SPARE

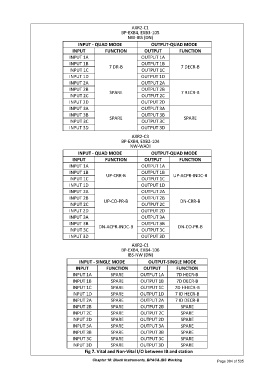

Fig 7. Vital and Non-Vital I/O between IB and station

Chapter 18: Block Instruments, BPAC& IBS Working Page 384 of 535
